Magnetic interactions

Variant i Interactive tutorial lecture   Other Variants Dynamics first

Students are given practice in: relating magnetic fields to currents, using the right-hand rule, and relating the behavior of a magnetic compass to external magnetic fields.

Topics   Electricity and magnetism / Magnetism: fields, representations, vectors, bar magnet, compass, current-carrying wire, forces, Lorentz force, magnetic fields, and right-hand rules

Jump to:

Materials

Materials by the UW team

  • Clicker Questions OnlyTiIP_ITL_1stEd_MGI_tutorial_slides_learning_catalytics.pdfVerification required
  • Instructor GuideTiIP_ITL_1stEd_MGI_instructor-guide.pdfVerification required
  • PretestTiIP_ITL_1stEd_MGI_pretest.pdfVerification required
  • Pretest for LMSTiIP_ITL_1stEd_MGI_pretest_qti.pdfVerification required
  • Exam QuestionsTiIP_ITL_1stEd_MGI_exam.pdfVerification required
  • Equipment ListTiIP_ITL_1stEd_MGI_equipment.pdf


Clicker Questions Only
PDF of clicker questions used in Instructor Slides

Verification requiredLogin or register to see a preview and download

Tutorial details

Section I: Magnetic forces on charged particles

In this section, students apply the right-hand rule for magnetic force on charged particles in uniform fields. Each question provides two of the necessary vector directions (for velocity, magnetic field, or force) and students are asked to find the direction of the third.

Section II: Magnetic force on a current-carrying wire

Students apply the right-hand rule to make predictions about the magnetic force by a bar magnet on a current carrying wire. After making each prediction, they observe the associated demonstration and resolve any inconsistencies between their predictions and observations.

Section III: Magnetic compasses

Students explore the magnetic fields of a bar magnet and a current carrying wire by predicting the orientation of a compass placed at different points in each magnetic field.

For instruction tips, login or register as a verified educator to see the Instructor Guide.

Prerequisites

Students should have studied single-battery circuits and the magnetic field produced by a bar magnet.

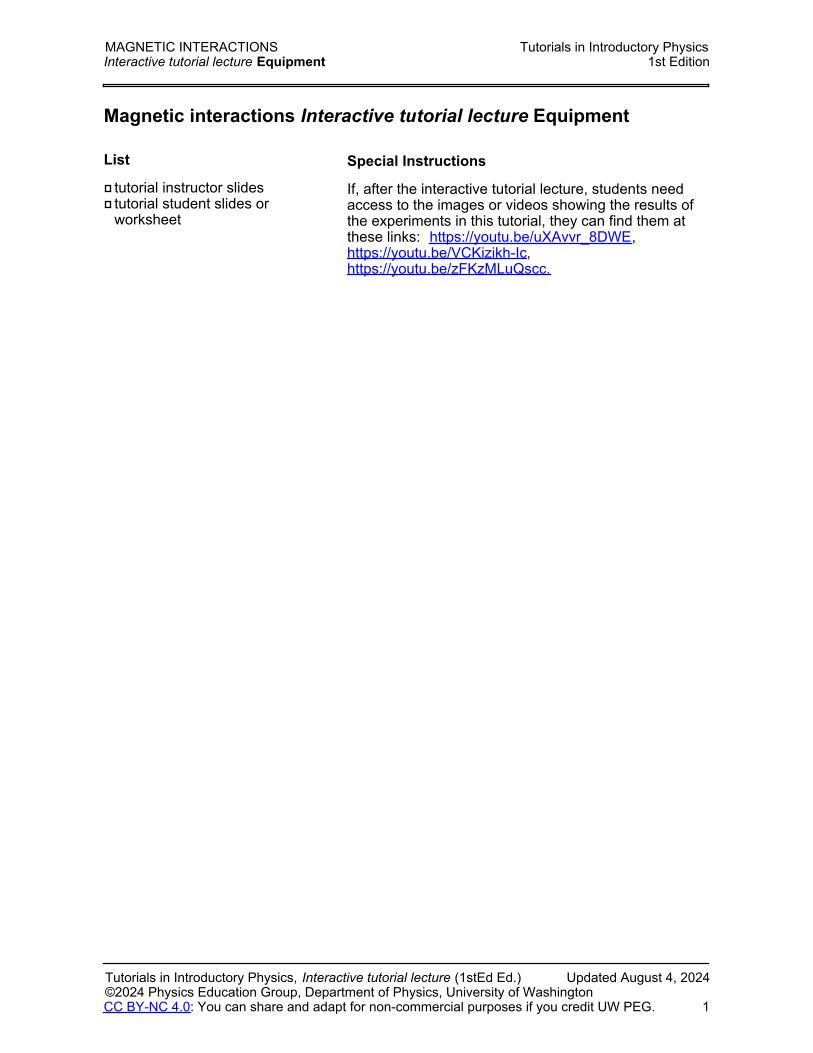

Equipment

Special Instructions

If, after the interactive tutorial lecture, students need access to the images or videos showing the results of the experiments in this tutorial, they can find them at these links:  https://youtu.be/uXAvvr_8DWE, https://youtu.be/VCKizikh-Ic, https://youtu.be/zFKzMLuQscc.

List

  • tutorial instructor slides
  • tutorial student slides or worksheet

Resources and Links

https://youtu.be/uXAvvr_8DWE, https://youtu.be/VCKizikh-Ic, https://youtu.be/zFKzMLuQscc

Discussion

Coming Soon! We hope to release the discussion section on each tutorial soon.
