Developed by Larry Dukerich and Bob Beichner
|Purpose||To assess high school students' ability to interpret kinematics graphs.|
|Focus||Mechanics Content knowledge (kinematics, graphing)|

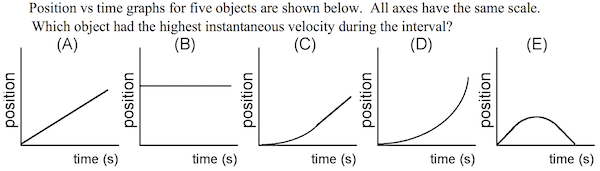

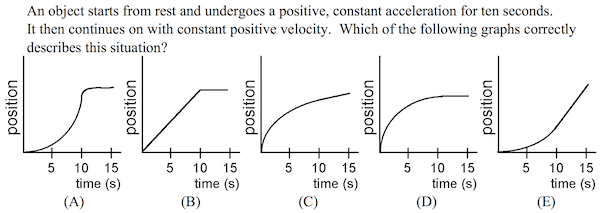

Sample questions from the TUG-K2:
This is the lowest level of research validation, corresponding to at least one of the validation categories below.
Research Validation Summary
Based on Research Into:
- Student thinking
- Student interviews
- Expert review
- Appropriate statistical analysis
- At multiple institutions
- By multiple research groups
- Peer-reviewed publication
There is no research on the TUG-K2. See the TUG-K page for an overview of research on the TUG-K.
- R. Beichner, Testing student interpretation of kinematics graphs, Am. J. Phys. 62 (8), 750 (1994).
PhysPort provides translations of assessments as a service to our users, but does not endorse the accuracy or validity of translations. Assessments validated for one language and culture may not be valid for other languages and cultures.
If you know of a translation that we don't have yet, or if you would like to translate this assessment, please contact us!
Login or register to download the answer key and an excel scoring and analysis tool for this assessment.
There is no research on typical scores on the TUG-K2. See the TUG-K page for typical scores on the TUG-K.
Coming soon: The PhysPort Assessment Data Explorer
Start learning more from your tests.
- Get 1-click statistics
- Compare to students like yours
- Get practical, personalized recommendations
The TUG-K2 is a variant of the TUG-K designed specifically for use in high school classrooms. The major difference is that the TUG-K2 de-emphasizes problems involving changing accelerations, which is rarely discussed in a high school setting. There are also a few completely new questions more appropriate for a high school level, such as one dealing with instantaneous velocity. Otherwise, there are a few minor differences, such as reporting numbers without scientific notation or simplifying the wording of questions (e.g., changing "What was the acceleration at t = 90 s?" to "What was the acceleration at the 90 s mark?"). Larry Dukerich, a high school teacher, modified the TUG-K2 from the original TUG-K in 1994, with the approval of Bob Beichner, the developer of the TUG-K.
Intro college, High school
