How can I design an effective in-class student worksheet for PhET simulations?

posted June 28, 2016 and revised November 17, 2022
by Yuen-ying Carpenter and Stephanie Chasteen

PhET simulations are free, online interactive simulations for teaching and learning science. The simulations emphasize visual models, cause-and-effect relationships, and multiple representations. Click here to see all Expert Recommendations on the use of PhET.

In this document, we will discuss using PhET in a guided worksheet. This is a strategy which has been found to support student learning (Chamberlain et al. 2014; Moore, Herzog, and Perkins 2013; Perkins et al. 2012; Moore et al. 2014). See also our recommendation on Facilitating Activities using PhET. In particular, how do we help students use the questions and the simulation to think about the physics, or to practice new skills – not just focus on getting to the end of the worksheet?

We have developed significant resources for the K12 community around activity design and facilitation, which may also serve as useful resources. See Designing Activities for K12 and Facilitating Activities for K12. Our one-page guide to PhET Activities using Guided Inquiry is another helpful resource.

1. Keep it short.

Activity worksheets should be as short as possible -- aim for 4 pages or less, covering about 3 learning goals. It might be better to have several shorter activities than one longer one, to keep students focused on the key ideas. Longer activity sheets can lead to a focus on just ‘getting through’ the entire activity, and reduce your opportunities to have rich discussions with your students. Eliminating any explicit instructions on how to use the simulation often helps to keep the worksheet concise. For a good example of a short activity, click the thumbnail to the right.

Within the activity, use short, simple questions, leaving plenty of open space for student work. Keeping it simple allows opportunities for students to engage in meaningful exploration and discussion of the simulation.

2. Start with open exploration time.

Start any student hands-on sim activity with about five minutes of open exploration, during which students explore any and all aspects of the sim without specific direction. You might start your activity with a simple instruction, “Take about 5 minutes to explore the sim before you begin.” or even ask students to explore before handing out the worksheets. (Moore, Herzog, and Perkins 2013Podolefsky, Rehn, and Perkins 2013)

This open exploration...

  1. Familiarizes students with the controls, decreasing the need for instructions later in the activity,
  2. Minimizes student distraction (due to undiscovered features) when working through the activity sheet and,
  3. Supports student engagement and ownership with the sim and their learning.

3. Avoid explicit directions.

One of the biggest challenges is to get students out of fill-in-the-blank” mode, and into “sense-making” mode:

Fill-in-the-blank mode Sense-making or inquiry mode
What are you writing for the other half of part two? Let’s say “decrease.” What’s the next question? They’ll be further apart, the more the charge is? Can we move the slider bar so we can see if the distance increases? Wait, why does it look like that?

Many of the tips in this article are geared towards getting students into "inquiry mode", most importantly giving open-ended challenges (see next section) and avoiding explicit instructions.  Students don’t need a “how-to” guide to use the simulation. Short prompts should guide students about which ideas to focus on, not tell students how they should go about doing things in the sim. Overly detailed directions typically result in students limiting their exploration of the simulation, and focusing on the instructions rather than on understanding what they see. Instead, we recommend light guidance promoting exploration, without direct instruction on how to use the simulation. (Chamberlain et al. 2014; Adams, Paulson, and Wieman 2008; Moore, Herzog, and Perkins 2013

4. Give open-ended challenges.

What types of prompts can we use instead of step-by-step directions? Challenge prompts encourage students to engage with the sim and explore ideas more deeply. (Chamberlain et al. 2014; Adams, Paulson, and Wieman 2008)

Example Challenge Prompts that Encourage Targeted Inquiry:

  • Find all the ways to… blow the top off the box.
  • What’s the biggest… orbit you can make?
  • How many… collection boxes can you fill in 5 minutes?
  • List all the essential items to…make a circuit.
  • What are two ways to…increase the kinetic energy of the skater?
  • How can you make…the gravity force…bigger?
  • How can you create … the smallest non-zero acceleration?
  • Develop a procedure for … identifying an unknown material (e.g., in Density sim).

5. Build on students’ prior knowledge, and connect to the real world.

Ask questions to elicit student ideas about a topic, and then guide them to use the simulation (and peer discussion) to test their ideas. For example, to start using a simulation about buoyancy, ask them, “What do you think affects whether something floats? Do you think it matters what liquid I place the object into?”

Also, ground your questions and ideas in familiar, real-world experiences. Students learn more when they can see that science is relevant to their everyday life. Where possible, ask questions in the activity that help them relate science to their personal experience. For example, in a simulation exploring pendulums, ask students to think about their experience riding a swing.

6. Make use of sim features and examples.

When you’re first trying to create an activity (for in-class or recitation use) which uses the PhET simulations, be sure to sit down and play with the simulation yourself, to see what it can do. How will you help students achieve your learning goals? If you are writing an activity for lab use, how will the simulation complement any real-life equipment? Find ways to let the activity prompts complement the simulation, so that the two work together, rather than compete for attention:.

  1. Students are drawn to games or challenges in the sims. Leverage these games by using them in the activity itself, rather than forcing students to choose between what the sim encourages and what the activity asks for.
  2. Use the visual nature of the sim to your advantage, and ask students to explain phenomena with both words and pictures. You can also incorporate sim images and representations into the worksheet itself.
  3. Keep your questions focused on the simulation!! Keep conceptual questions focused on the simulation, to encourage students to view the sim as a useful resource. Save extension questions, that reference examples or values from outside of the simulation, for the end of the activity.

7. Help students check their understanding.

As a whole class: Facilitating class discussions or clicker questions at intervals during the activity can help you check-in with student groups and ensure that students are on the same page with their understanding. More tips on effective activity facilitation can be found here.

Self-checks: Students can check their own understanding using the simulation. For example, ask students them to predict something based on their new knowledge and then check their prediction with the simulation.

8. Scaffold with tables

Tables help focus students on productive investigations, without needing many directions or overwhelming students with detail. Plus, when students to record responses to open-ended questions in tables, it’s easy for facilitating instructors or TAs to see student progress at a glance.

What makes a table effective?

  • Keep tables open, with minimal wording and plenty of space for written observations and/or actions.
  • Use checkboxes to give quick checks of understanding that the instructor or TAs can make note of while facilitating.
  • Think beyond data -- tables can be used to catalog a wide variety of ideas.

What can a table prompt students to do?

I. Compare between Variables:
Pendulum characteristics Observation: Period of a swing
Length of string Mass of pendulum Release height Acceleration due to gravity (g)

II. Explore Cause/Effect Relationships:
How can you change the gravity force? Gravity Force
Put star and planet closer together ? Increases ? Decreases
  ? Increases ? Decreases
  ? Increases ? Decreases
III. Classify objects or scenarios:
Good Conductors Weak Conductors Insulators
How can you tell something is a good conductor of electricity in the sim? How can you tell something is a weak conductor of electricity in the sim? How can you tell something is an insulator of electricity in the sim?
IV. Focus on key features or concepts:

Orient students to just the key sim features, rather than drawing unnecessary pictures of sim details.

Describe at least 2 different ways that you were able to balance the objects with different masses and draw them below.

1



2



Examples

To see how these recommendations play out in practice, check out some of these examples. More activities are available on our Teaching Resources page.

 Description  This is an especially good example of...

Activity (click to open)

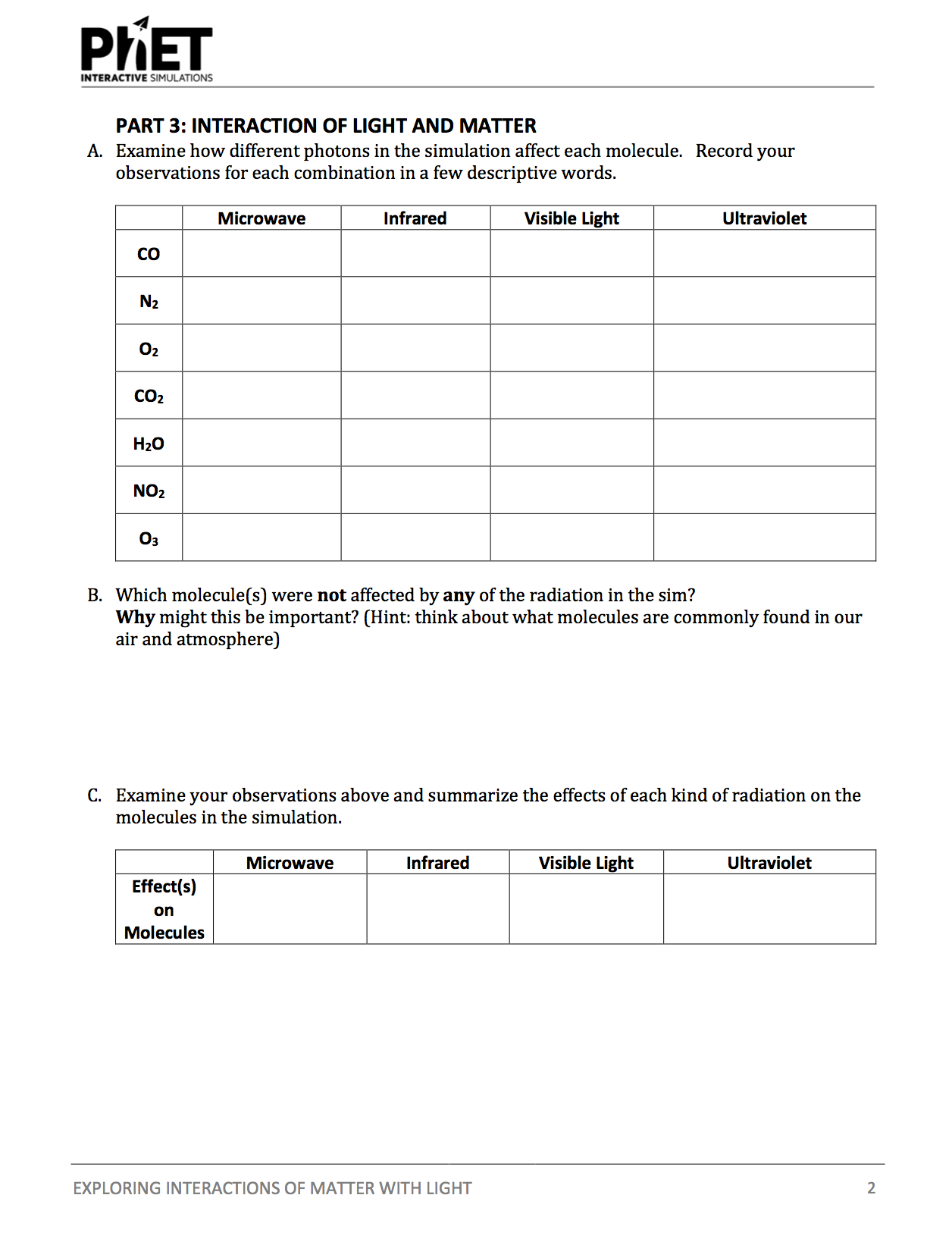

Molecules and Light Simulation.

Students construct guidelines to determine how molecules react with light of varying energy.

Find this activity on PhET.

Credit: Alycia Palmer, Ohio State University


  • Short, open questions
  • Start with open exploration
  • Avoid explicit instruction
  • Tables

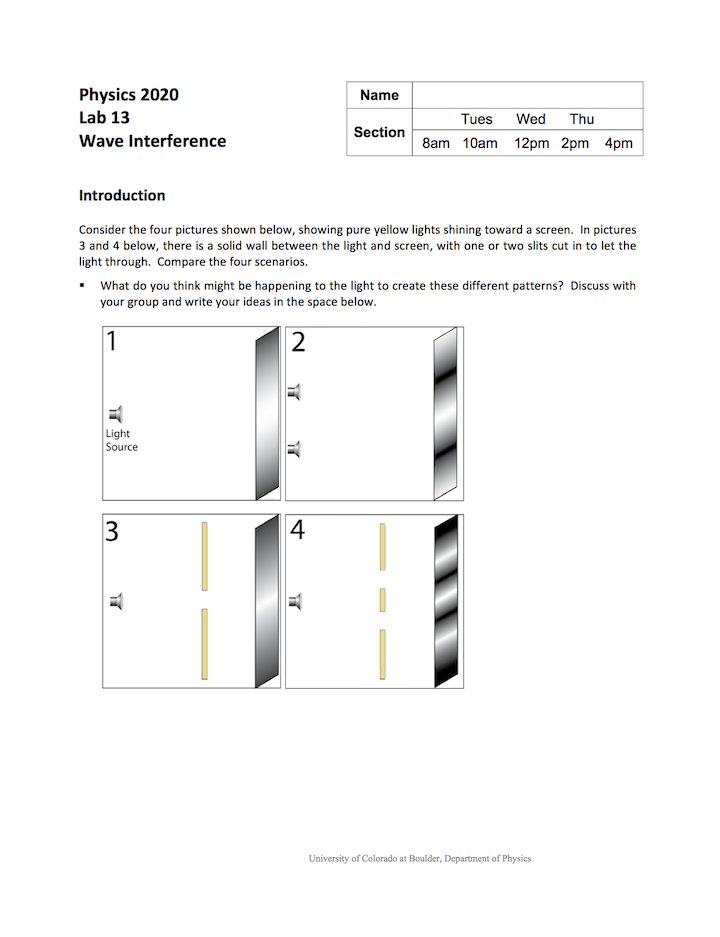

Wave Interference simulation.

Students observe interference patterns, and explore cause and effect relationships. (Includes the use of real-world equipment for a laboratory component).

Find this activity on PhET

Credit: University of Colorado Boulder Physics.


  • Avoid explicit instruction
  • Using visual nature of simulation
  • Recording observations
  • Self-checking understanding
  • Connecting to real equipment

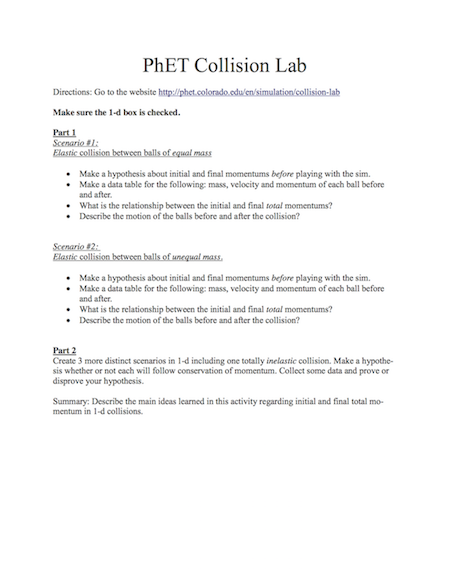

Collision Lab simulation

Students conduct experiments to investigate momentum conservation in collisions. Can be used as a lab activity.

Find this activity on PhET.

Credit: Wendy Adams


  • Short activity
  • Avoid explicit instructions
  • Open-ended challenge prompts
  • Recording data

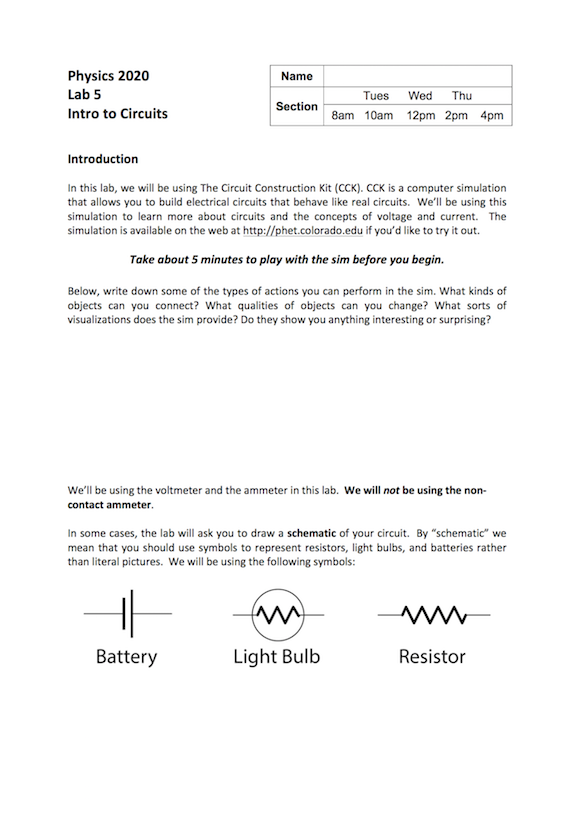

Circuit Construction Kit (DC) simulation

Students use the Circuit Construction Kit, and real equipment, to explore the behavior of circuits. Can be used as a lab activity.

Find this activity on PhET.

Credit: Finkelstein et al.


  • Use of challenge prompts
  • Using visual nature of sim
  • Self-checking understanding
  • Connecting to real equipment


Under Pressure simulation

Students investigate pressure, and predict how it will change in different situations. Can be used as a lab activity.

Find this activity on PhET.

Credit: Trish Loeblein.


  • Start with open exploration
  • Use of open-ended challenges
  • Make use of sim features
  • Comparing variables
  • Recording data
  • Self-checking understanding

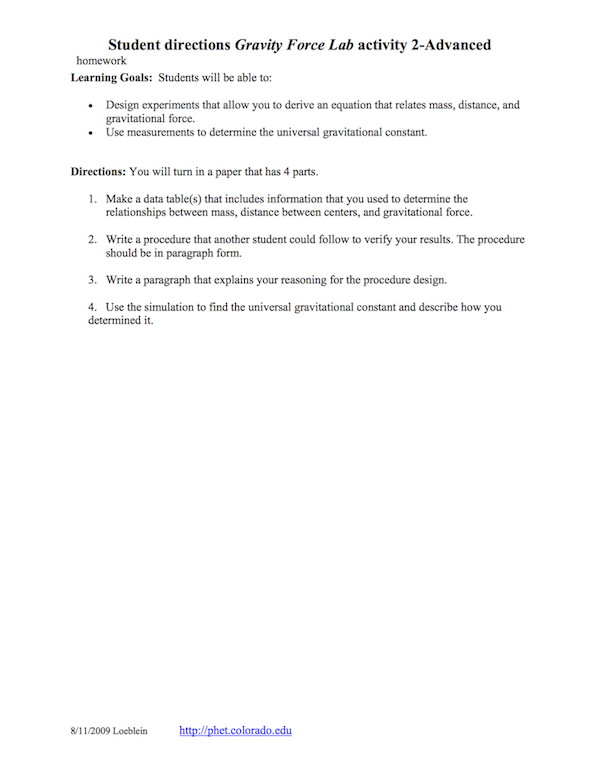

Gravity Force Lab simulation

Students design experiments to relate mass, distance, and gravitational force. Can be used as a lab activity.

Find this activity on PhET.

Credit: Trish Loeblein.


  • Short, open activity
  • Use of open-ended challenges
  • Avoid explicit instructions
  • Comparing variables
  • Recording data

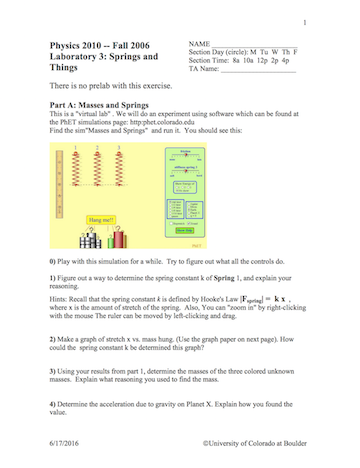

Masses and Springs simulation

Students use the Masses and Springs simulation as a virtual lab, including taking measurements and identifying the acceleration due to gravity on Planet X. Can be used as a lab activity.

Find this activity on PhET.

Credit: Michael Dubson.


  • Short, open activity
  • Start with open exploration
  • Avoid explicit instructions
  • Open-ended challenges
  • Recording data
  • Tables (student created)

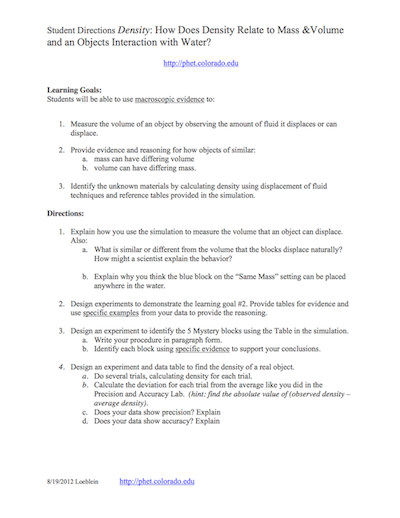

Density simulation

Students use the Density simulation to measure the volume of an object, explore ideas about mass and volume, and identify an unknown material. Can be used as a lab activity.

Find this activity on PhET.

Credit: Trish Loeblein.


  • Short, open activity
  • Open-ended challenges
  • Avoid explicit instructions
  • Make use of sim features
  • Tables (student created)
  • Recording data

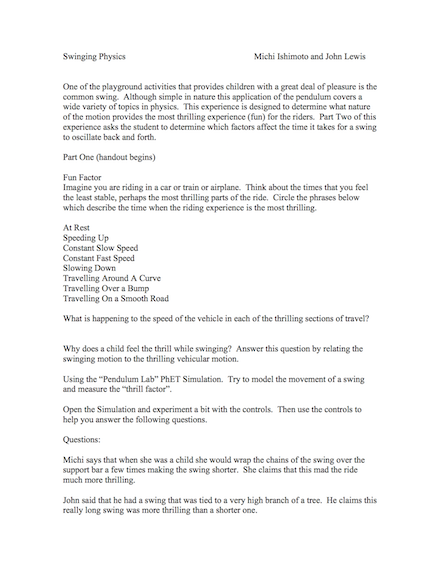

Pendulum Lab simulation

Students use the Pendulum Lab simulation to determine why children feel a “thrill” when riding on a swing

Find this activity on PhET.

Credit: Michi Ishimoto and John Lewis


  • Start with open exploration
  • Short, open activity
  • Open-ended challenges
  • Avoid explicit instruction
  • Make use of sim features
  • Everyday experience
